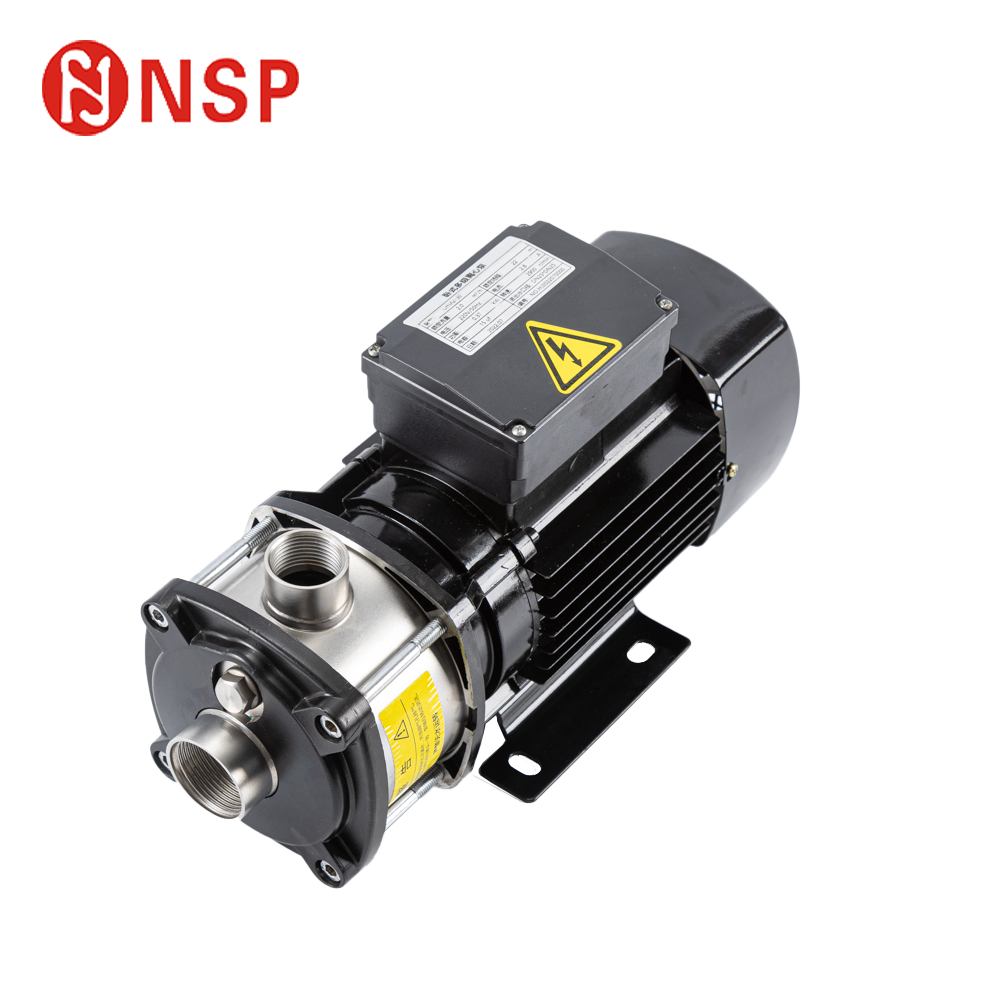

Horizontal Light Stainless Steel Multistage Pump

Product Description of Horizontal light stainless steel Multistage pump

The Shanghai Nuosai PWP/PWPA series lightweight stainless steel Horizontal Multistage centrifugal pump is a versatile non-self-priming Horizontal Multistage Centrifugal Pump, equipped with a lengthened shaft motor, axial inlet and radial outlet, and a compact structure. The overcurrent part of the stainless steel horizontal Multistage Centrifugal Pump body is made of high-quality 304 stainless steel stamping and welding, and the shaft seal adopts hard alloy and fluorine rubber mechanical seal, making the pump suitable for mildly corrosive media. The Shanghai Nuosai stainless steel horizontal multistage Centrifugal Pump is suitable for air conditioning systems, cooling systems, canning machinery, industrial cleaning, environmental engineering, aquaculture, water supply and boosting systems, water treatment systems, and fertilization and metering systems. It can transport media such as tap water, mineral water, softened water, and mildly corrosive media. Medium temperature: normal temperature type 0-68 degrees Celsius, hot water type 0-120 degrees Celsius.

Technical Data of the Horizontal light stainless steel Multistage Pump

Flow Rang :4-28m³/h

Head Rang:4-60m

Medium Temp:Common type:-15℃ -- +70℃

Hot water:-15℃ -- +120℃

Power: 0.37kw-7.5kw (0.5Hp-10hp)

Material:Stainless steel AISI304

Motor

The motor is a fully enclosed, air-cooled two-pole standard motor.IE3 standard(IE2 and IE1 is optional).Highly efficient. low noise and environment friendly.

Insulation class :F

Protection class : IP55

Motor protection : built in

The motor shaft is Special shaft(extended shaft) with high connection accuracy,low noise and small Vibration.

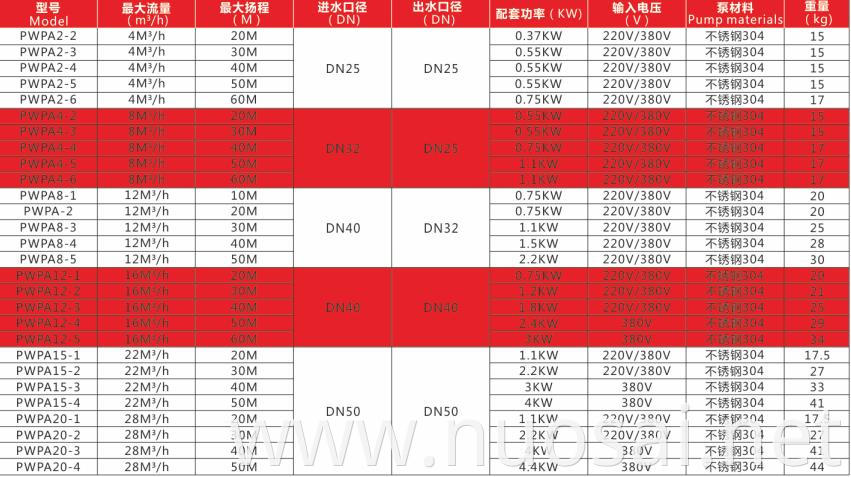

Model
