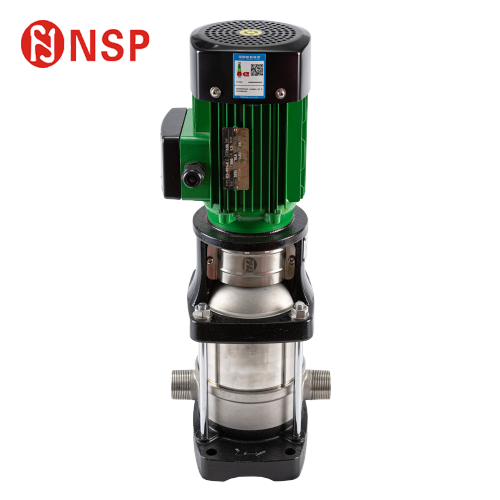

Stainless Steel Vertical Multistage Pumps
Get Latest PricePayment Type: | L/C,T/T,D/P,D/A,Paypal,Others |
Incoterm: | FOB,CFR,CIF,EXW |
Transportation: | Ocean |
Port: | 上海 |
Payment Type: | L/C,T/T,D/P,D/A,Paypal,Others |
Incoterm: | FOB,CFR,CIF,EXW |
Transportation: | Ocean |
Port: | 上海 |
Model No.: PMP/PMPA
Power: 0.37-110kw
Flow Rate: 1-240 m³/h
Head: Max305m
Materials: Stainless Steel
Selling Units | : | Set/Sets |
Package Type | : | seaworthy |
Product Description of Stainless Steel Vertical Multistage Pumps
The PMP Vertical Multistage Centrifugal Pump consists of an electric motor and a pump. The motor is a Y-type three-phase asynchronous motor, and the pump is connected to the motor through a coupling, forming a rigid connection that does not require adjustment during use. The pump is composed of a stator and a rotor. The stator consists of inlet section, middle section, guide vanes, outlet section, and stuffing box. To prevent wear, the stator is equipped with sealing rings and balance sleeves, which can be replaced with spare parts when worn. The rotor consists of a shaft, impeller, and balance drum. The lower end of the rotor is a water-lubricated bearing, and the upper part is an angular contact ball bearing. The axial force of the PMP vertical Multistage Centrifugal Pump is mainly borne by the balance drum, and the remaining small residual axial force is supported by the angular contact ball bearing. The shaft seal is a mechanical seal. The rotating direction of the PMP vertical multistage Centrifugal Pump is counterclockwise when viewed from the drive end.
Product Display of Stainless Steel Vertical Multistage Pumps
