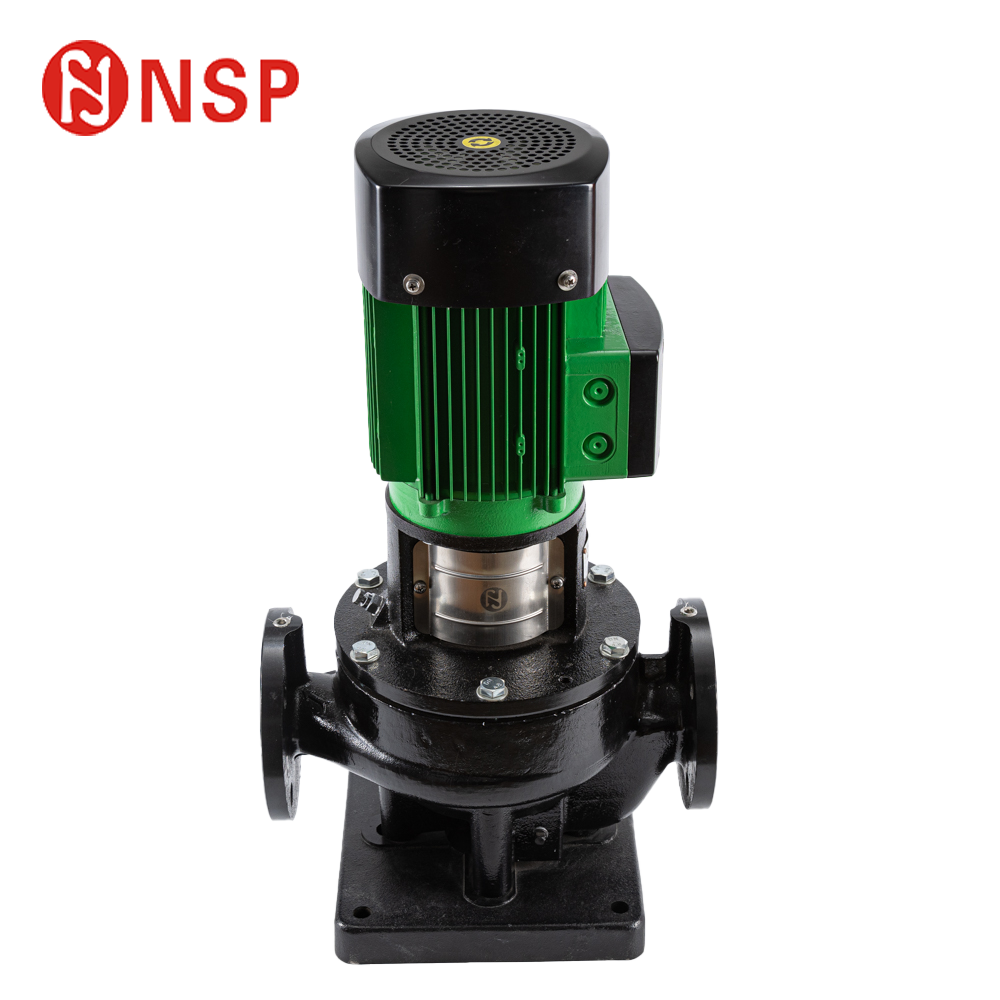

Vertical Inline Centrifugal Water Circulation Pump
Get Latest PriceTransportation: | Ocean,Land,Air |
Transportation: | Ocean,Land,Air |
Model No.: NSLA
Brand: NuoSai/NSP
Name: Inline Water Circulation Pump
Material: Stainless Steel/Cast Iron
Power: 0.37-150kw
Selling Units | : | Piece/Pieces |
NSLA Series Vertical Inline Single Stage Centrifugal Water Circulation Pump
The NSLA Series Vertical Inline Single Stage Centrifugal Water Circulation Pump is a high-quality pump that features a separable structure of motor and pump, making it easy to maintain and repair. The pump body is designed to be pulled out, and all products are equipped with standard motors and mechanical seals. Compared to similar products, the NSLA has a better structure that reduces the impact of impurities in the medium. The pump body is equivalent to a section of pipeline, and can be blocked with a blind flange during repairs to avoid disrupting the system's normal operation. The product flange complies with the relevant provisions of PN16 in ISO7005-2/DIN2501 standard, and the inlet and outlet diameters comply with relevant standards.
The NSLA125 and NSLA150 are available in both long-shaft and easy disassembling structures, while products above NSLA200 all adopt an easy disassembling structure that allows users to change the mechanical seal without dismounting the motor.
NSLA Series Vertical Inline Single Stage Centrifugal Water Circulation Pump features:
1. NSLA Series Vertical Inline Water Circulation Pump drive mode is open clamp coupling,which is easy to installed and disassembled, with high quality impeller dynamic and static balance to ensure the smooth operation of the pump
2. Novel and unique structure,the pump head is installed independently,the impeller and pump shaft gravity is beared by the pump head, compared with the traditional pump,This design reduces the load of motor bearing, prolongs the service life of motor bearing
3. IEC standard YX3 series B14/B5 high degree standardization motor is vertical installed to save installation space.
4. The bearing is the original imported international famous brand precision bearing, with strong reliability and long life.
5. NSLA series installation advantages: the pump head can be installed first, and then the motor is installed, motor and pump head can be purchased separately, in order to reduce the user's purchase cost to the greatest extent, or even purchase pump head replacement separately after the pump is completely aging and ineffective,This way is more affordable and more economical.
NSLA Series Vertical Inline Single Stage Centrifugal Water Circulation Pump Structure:

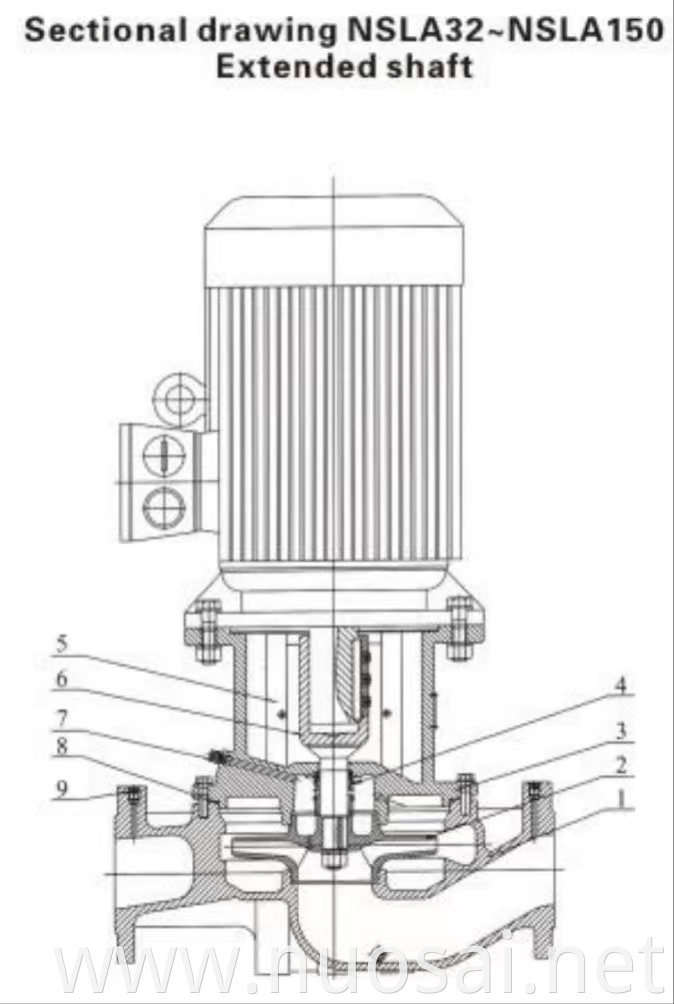

Material NSLA32-NSLA150 Extended Shaft No. Parts Material 1 Pump Body Cast iron HT200 2 Impeller Cast iron HT200 3 Pump Head Cast iron HT200 4 Mechanical seal Graphite/silicon carbide 5 Protection plate Stainless Steel 06Cr19Ni10 6 shaft Stainless Steel 20cr13 7 Air Release valve Stainless Steel AISI304 8 O Ring NBR 9 Screw plug Stainless Steel AISI304
/Stainless Steel AISI304
Material NSLA125-NSLA150 Detachable | ||
No. | Parts | Material |
1 | Pump Body | Cast iron HT200 |
2 | Impeller | Cast iron HT200 |
3 | Pump Head | Cast iron HT200 |
4 | Mechanical seal | Graphite/silicon carbide |
5 | Protection plate | Stainless Steel 06Cr19Ni10 |
6 | shaft | Stainless Steel 20cr13 |
7 | Air Release valve | Stainless Steel AISI304 |
8 | O Ring | NBR |
9 | Screw plug | Stainless Steel AISI304 |
10 | Coupler | Cast steel ZG270 500 |
11 | Supporting ring | Cast iron HT200 |

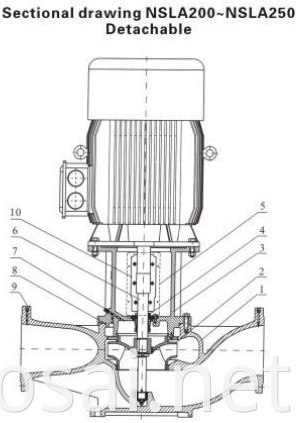

Material NSLA200-NSLA250 Detachable | ||
No. | Parts | Material |
1 | Pump Body | Cast iron HT200 |
2 | Impeller | Cast iron HT200 |
3 | Pump Head | Cast iron HT200 |
4 | Mechanical seal | Graphite/silicon carbide |
5 | Protection plate | Stainless Steel 06Cr19Ni10 |
6 | shaft | Stainless Steel 20cr13 |
7 | Air Release valve | Stainless Steel AISI304 |
8 | O Ring | NBR |
9 | Screw plug | Stainless Steel AISI304 |

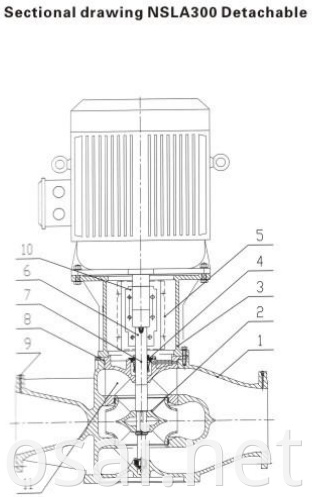

Material NSLA300 Detachable | ||
No. | Parts | Material |
1 | Pump Body | Ductile iron QT500-7 |
2 | Impeller | Cast iron HT200 |
3 | Pump Head | Cast iron HT200 |
4 | Mechanical seal | Graphite/silicon carbide |
5 | Protection plate | Stainless Steel 06Cr19Ni10 |
6 | shaft | Stainless Steel 20cr13 |
7 | Air Release valve | Stainless Steel AISI304 |
8 | O Ring | NBR |
9 | Screw plug | Stainless Steel AISI304 |
10 | Coupler | Cast steel ZG270 500 |
11 | Supporting ring | Ductile iron QT500-7 |
