Model No.: PMP
Brand: NSP
Max Flow Rate: 240m³/h
Max Head: 305m
Power: 0.37-110kw
Selling Units | : | Set/Sets |

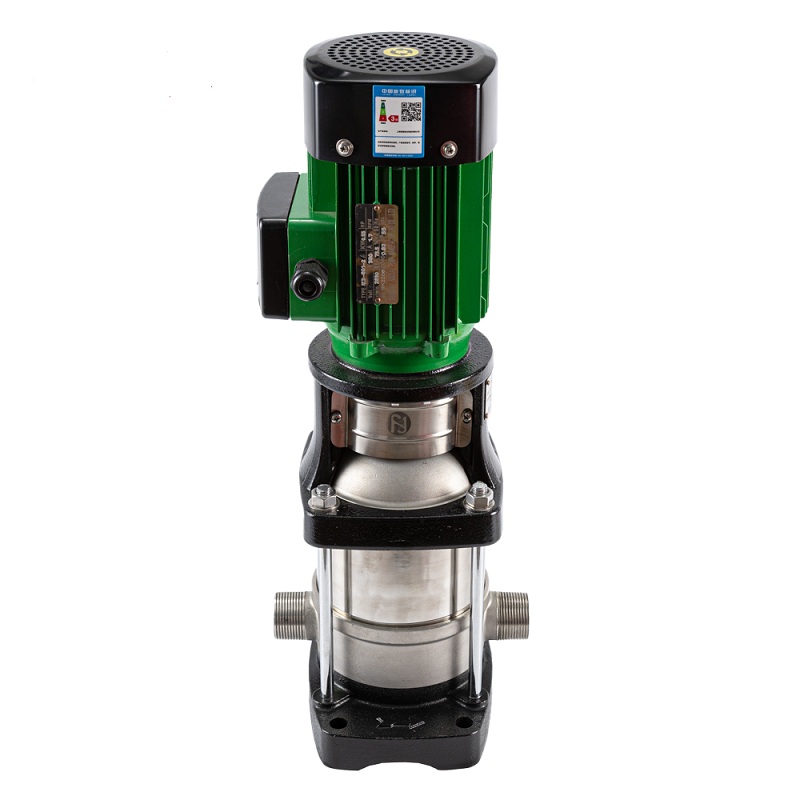

Shanghai NuoSai PMP10-15 Vertical Multistage pump
Advantage OF PMP10-15 Vertical Multistage Pump:
1.Stainless steel impreller -National practical patent design,lead far more efficient.
2.Adopt stainless steel spline shaft design which is more stable.
3.PMP the water inlet and outlet parts are stainless steel,protect the water quality and more long life.
4.All cast iron parts such as bracket are coated with the advanced electrophoretic technology, which is more beautiful than baking paint and more corrosion resistant,more long life
5.The outer surface of the tie rod is plated with Ni to make it more durable 6.Main bearing NSK(below 7.5kw)
7. Adopt solid forged flange connection
Performance Data OF PMP10-15 Vertical Multistage Pump:
Model | Power | Motor Speed | Q m³/h | 0 | 5 | 6 | 8 | 10 | 12 | 14 | |
PMP/PMPA | 10-1 | 0.75 | 2900 | H(m) | 11 | 10.2 | 10 | 9 | 8 | 7 | 4.5 |
10-2 | 0.75 | 2900 | 22.2 | 21 | 20.5 | 19 | 16.5 | 13.5 | 9.5 | ||
10-3 | 1.1 | 2900 | 33.3 | 31.5 | 31 | 28.5 | 25.5 | 22 | 16.5 | ||
10-4 | 1.5 | 2900 | 44.5 | 42 | 41 | 38 | 34 | 29 | 22 | ||
10-5 | 2.2 | 2900 | 56 | 52.5 | 51 | 48 | 43 | 37 | 28 | ||
10-6 | 2.2 | 2900 | 67 | 63 | 62 | 58 | 52 | 44 | 34 | ||
10-7 | 3 | 2900 | 78.5 | 74 | 73 | 69 | 62 | 52 | 40 | ||
10-8 | 3 | 2900 | 90 | 85 | 84 | 79 | 71 | 60 | 46 | ||
10-9 | 4 | 2900 | 101.5 | 96 | 94 | 89 | 80 | 67 | 52 | ||
10-10 | 4 | 2900 | 113 | 107 | 105 | 98 | 89 | 76 | 58 | ||
10-11 | 4 | 2900 | 124 | 118 | 115 | 108 | 98 | 84 | 64 | ||
10-12 | 5.5 | 2900 | 137 | 129 | 127 | 119 | 107 | 91 | 70 | ||
10-13 | 5.5 | 2900 | 147 | 140 | 138 | 130 | 116 | 99 | 76 | ||
10-14 | 5.5 | 2900 | 160 | 151 | 148 | 139 | 125 | 106 | 82 | ||
10-15 | 5.5 | 2900 | 171 | 162 | 159 | 149 | 134 | 114 | 88 | ||
10-16 | 7.5 | 2900 | 183 | 173 | 170 | 159 | 144 | 123 | 94 | ||
10-17 | 7.5 | 2900 | 194 | 184 | 180 | 169 | 153 | 130 | 100 | ||
10-18 | 7.5 | 2900 | 205 | 195 | 191 | 180 | 163 | 141 | 108 | ||
10-19 | 7.5 | 2900 | 217 | 206 | 201 | 190 | 172 | 147 | 113 | ||
10-20 | 7.5 | 2900 | 228 | 217 | 213 | 200 | 181 | 155 | 120 | ||
10-21 | 7.5 | 2900 | 240 | 228 | 223 | 210 | 191 | 162 | 126 | ||
10-22 | 11 | 2900 | 250 | 240 | 235 | 221 | 201 | 171 | 132 |
