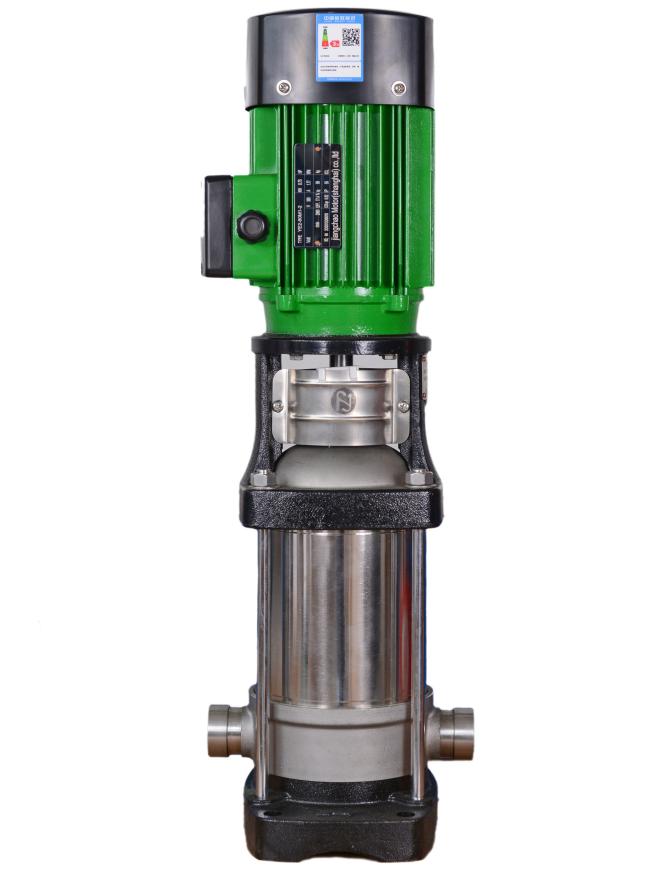

PMP5-5 Vertical Multistage Pump

Get Latest Price

Types:

Circulating Pumps
Centrifugal Pumps
Booster Pumps

Maximum lift:

305m

Maximum flow rate:

240m³/h

Option:

PMP5-5 Vertical Multistage Pump

Contact Now

Product Description

Product Attributes

Model No.: PMP

Brand: NSP

Max Flow Rate: 240m³/h

Head: 305m

Power: 0.37-110kw

Packaging & Delivery

Selling Units

Set/Sets

Nuossai Vertical Multistage Pump



Product Description

Shanghai NuoSai PMP5-5 Vertical Multistage pump

Advantage of PMP5-5 Vertical Multistage Pump:

1.Stainless steel impreller -National practical patent design,lead far more efficient.

2.Adopt stainless steel spline shaft design which is more stable.

3.PMP the water inlet and outlet parts are stainless steel,protect the water quality and more long life.

4.All cast iron parts such as bracket are coated with the advanced electrophoretic technology, which is more beautiful than baking paint and more corrosion resistant,more long life

5.The outer surface of the tie rod is plated with Ni to make it more durable 6.Main bearing NSK(below 7.5kw)

7. Adopt solid forged flange connection

Performance data of NuoSai PMP5-5 Vertical Multistage Pump

Model		Motor	Motor Speed	Q	0	2.5	3	4	5	6	7	8	8.5
Model		Kw	R/Min	(m³/h	0	2.5	3	4	5	6	7	8	8.5
PMP PMPA	5-2	0.37	2900	H(m)	14.7	13.5	13.3	12.5	11.5	9	7	5	4
	5-3	0.55	2900		22.1	21	20.5	19	17.5	15	12	9	7.5
	5-4	0.55	2900		29.5	28	27.5	26	24	21	17	13	11
	5-5	0.75	2900		37	35	34.5	33	30	27	23	18	15
	5-6	1.1	2900		44.5	42	41.5	40	37	33	27	21	18
	5-7	1.1	2900		52	49.5	48.5	46	42.5	38.5	31.5	24.5	21
	5-8	1.1	2900		59	57	56	53	49	44	36	28	24
	5-9	1.5	2900		67	64	63	60	55	49.5	41.5	31.5	27
	5-10	1.5	2900		945	71	70	66	62	55	46	35	30
	5-11	1.5	2900		82	78	77	73	68	61	51	39	33
	5-12	2.2	2900		89.5	85	84	81	74.5	66	55	43	37
	5-13	2.2	2900		97	92	91	87	80	71	60	47	40
	5-14	2.2	2900		104	100	98	93	87	77	65	51	43.5
	5-15	2.2	2900		112	0	106	100	93	82	69	54	46.5
	5-16	2.2	2900		119	114	112	107	99	88	74	58	50
	5-17	3	2900		127	121	118.5	113	105	94	79	62	53
	5-18	3	2900		134	128	126	120	111	99	84	66	56
	5-20	3	2900		149	143	140	133	124	110	93	73	63
	5-21	3	2900		157	150	147	140	130	116	98	77	66
	5-22	4	2900		164	157	154	146	136	122	103	82	70
	5-23	4	2900		172	165	151	153	147	128	108	86	74
	5-24	4	2900		179	172	168	160	149	133	113	90	77
	5-25	4	2900		187	179	175	167	155	139	117	93	80
	5-27	4	2900		202	193	89	180	168	150	127	101	86
	5-28	4	2900		210	201	197	187	174	156	132	105	90
	5-29	5.5	2900		217	208	204	194	180	163	139	111	95
	5-30	5.5	2900		225	216	212	201	186	169	144	115	98
	5-33	5.5	2900		249	733	734	777	706	187	160	127	109
